Inverter DC Air Plasma Cutter LG-100;LG-200
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | air plasma,air plasma cutter,inverter air plasma |
||
|---|---|---|---|
1. A dvanced inverter IGBT technology ,High cutting frequency;
2. Portability,energy saving ,noiselessness and high reliability.
3. With arc maitainence device, applicable to automatical cutting equipment;
4. Touch and untouch arc initiation;
5. suitable for stainless steel ,aluminum ,copper, titanium,cast iron,carbon steel,alloy steel,alloy metal and nearly all the metals cutting.
6. Stable arc, long working time.
7. Complete accessories: cutting torch, welding cable,earth clamp, carton box
Air Plasma CutterSPEC:

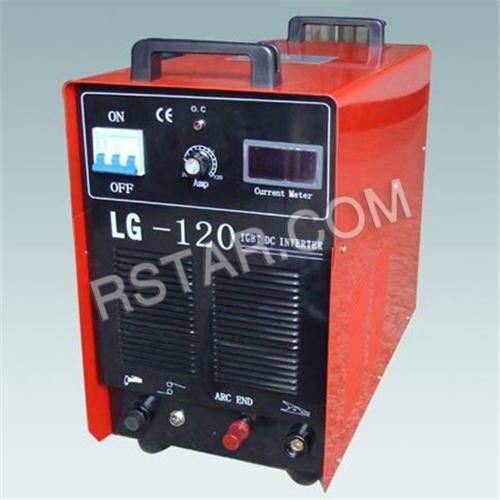

Model Spec. | LG-120 |
Power supply voltage | AC 380+15% V / 50~60 Hz |
Power supply capacity | 20 kVA |
Duty cycle | 60% |
Current range | 20-120 A |
No-load voltage | 275 V |
Power output voltage | 128 V |
Arc striking way | Touch /Untouch |
COSφ (η) | 0.93 |
Protection grade | IP21 S |
Insulation grade | B |
Air pressure | 6 MPa |
Cutting Thickness | 45 mm |
Weight | 50 kg |
Dimensions (mm) | 300 x 540 x 600 |
