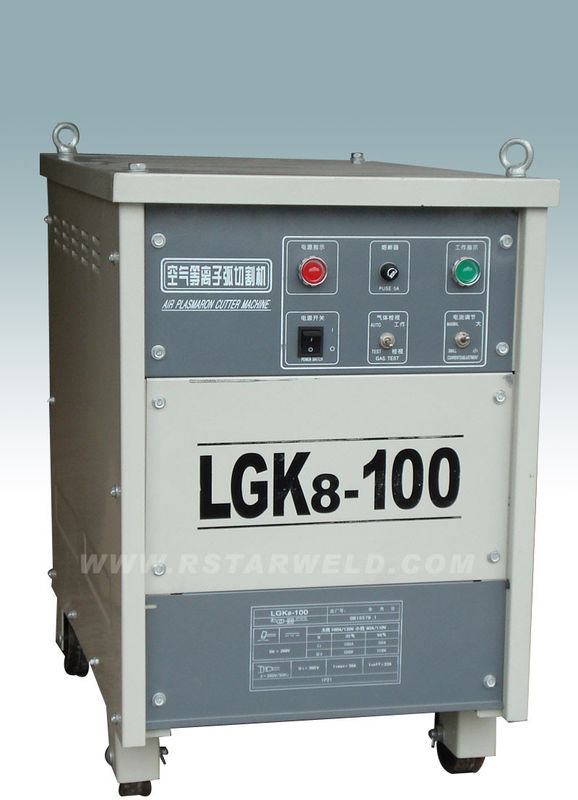

1. Air Plasma Arc Cutting Machine takes compressed air source and AC current as energy source,at low cost in cutting.
2. suitable for stainless steel ,aluminum ,copper, titanium,cast iron,carbon steel,alloy steel,alloy metal and nearly all the metals cutting.
3. High cutting efficiency
4. Complete accessories: cutting torch, welding cable ,earth clamp, carton box
Specification | LGK-40 | LGK-63 | LGK-100 | LGK-120 | LGK-200 |
Power Voltage | 380V 50HZ | 380V 50HZ | 380V 50HZ | 380V 50HZ | 380V 50HZ |
Rated Input Capacity (KVA) | 11.2 | 13.5 | 24 | 28 | 48 |
Rated Input Current (A) | 17 | 19 | 36 | 43 | 72 |
Rated Duty Cycle | 60% | 60% | 60% | 60% | 60% |
No-load Voltage(V) | 240 | 240 | 240 | 270 | 270 |
Operating Voltage (V) | 90 | 90 | 110 | 110 | 110 |
Cutting Thickness(mm) | 0.6-12 | 0.6-18 | 1-30 | 5-40 | 5-60 |
Air Pressure (Mpa) | 0.4-0.5 | 0.4-0.6 | 0.5-0.65 | 0.5-40 | 0.5-0.65 |
The Volume of Flow (L/min) | 100 | 100 | 130 | 130 | 130 |
Overall Size (mm) | 760×460×440 | 760×460×440 | 760×700×760 | 760×460×440 | 850×480×500 |
Weight (kg) | 100 | 105 | 180 | 200 | 240 |
