High Light: | air plasma cutter,plasma cutter,inverter plasma cutting |
---|

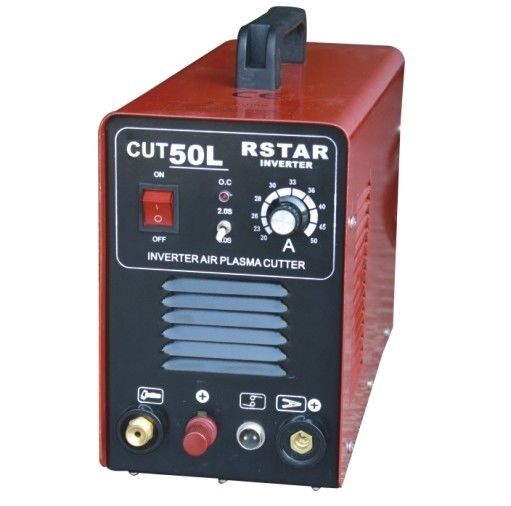

air Low Frequency plasma cutter CUT50L, to improve the torch electrodes and conductive mouth, using pull p
Low-frequency plasma cutting machineusing two-valve control, to improve the torch electrodes and conductive mouth, using pull plasma formed to enhance the power grid as a result of pressure drop, from arc of instability, improved electromagnetic interference place more stringent requirements. Greatly reduced High-frequency high-voltage discharge produced by electromagnetic interference, environmental protection and human design to reduce the harm to the human body.
1. A dvanced inverter technology,Low cutting frequency;
2. With arc maintainence device, applicable to automatical cutting equipment;
3. Touch and untouch arc initiation;
4. Stable arc, long working time.
5. 220v single phase, portable, fan-cooled, thermostatic protection, suitable for DIY and family use.
6. D series are for 110 / 220 duel voltage input, automatic input voltage changing
7. Complete accessories: cutting torch, welding cable, earth clamp, carton box.
Item | CUT-50L / 50LD |
Input power voltage | AC110/220V±10% |
Frequency: | 50/60Hz |
Rented input power capacity | 6.3KVA |
Rate input current | 28.7A |
No-load voltage | 225V |
Current range | 20 -50A |
Rated output voltage | 15A/86V~50A/105V |
Rated duty cycle | 60% |
No-load power | 40W |
Efficiency: | 85% |
