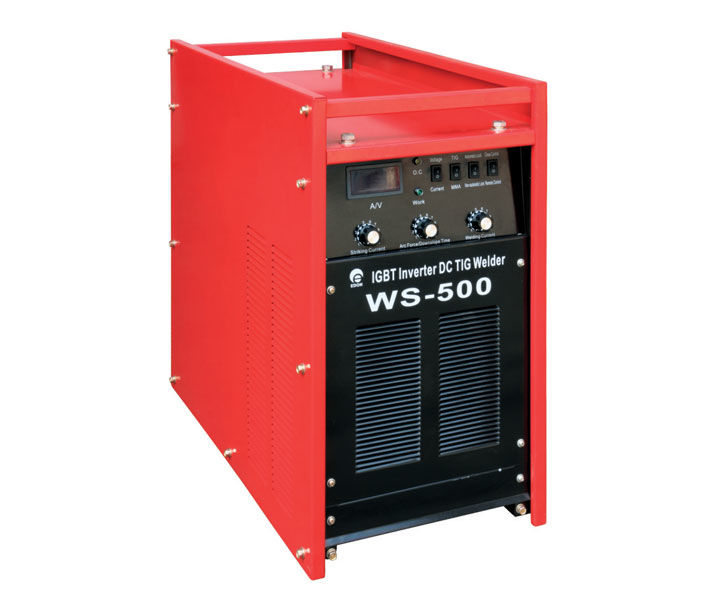

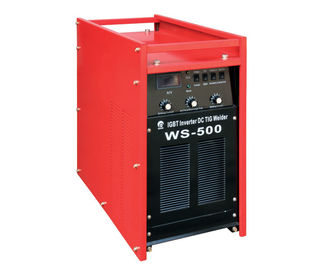

WS Series Single IGBT Inverter TIG/MMA Welding Machine WS500
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | TIG welding machine,IGBT TIG welder,inverter TIG welding machine |
||
|---|---|---|---|
Specifications
WS-500 DC TIG/MMA welding machine
1:CE approved
2:LCD Digit show
3:stable,protable,durable
4:Advanced inverter technolog
High efficiency TIG/MMA welding machine WS500
1:CE approved
2:LCD Digit show
3:stable,protable,durable
4:Advanced inverter technolog
1. Adopting MOSFET inverter technology, advanced electronic circuit design, handy power supply, energy saving.
2.Direct and reliable welding current digital display.
3.Automatic compensation for electricity voltage pulsation.
4.Advanced inverter technology. Suiltable for TIG weld various metals.
5.Easy arc initiation, stable welding current, fast dynamic response, no welding noise, low welidng spatter, no magnetic bias, smooth weld appearance.
6.Stable and reliable operation, highly effective and energy saving, compact structure, reduced weight, easy to carry.
Model | WS500 |
Input power voltage Frequency | AC.three phase 220V~415V±15% 50Hz |
Rated input power capacity | 17KW |
Output current range | 20-500A |
Rated output voltage | 30V |
No-load voltage | 70V |
Duty cycle | 60% |
No-load power | 40W |
Weight | 35kg |
Overall dimension | 0.93 |
Postflow time | HF |
Current of MMA | 20-500A |
Drive adjustment arrange | 85% |
Welding thickness | 490x330x370mm |
Insulation class | B |
Efficiency | — |
Power factor | 3-23mm |
Protection class of case | IP21 |
