WS Series Single IGBT Inverter TIG/MMA Welding Machine WS400

China WS Series Single IGBT Inverter TIG/MMA Welding Machine WS400 supplier

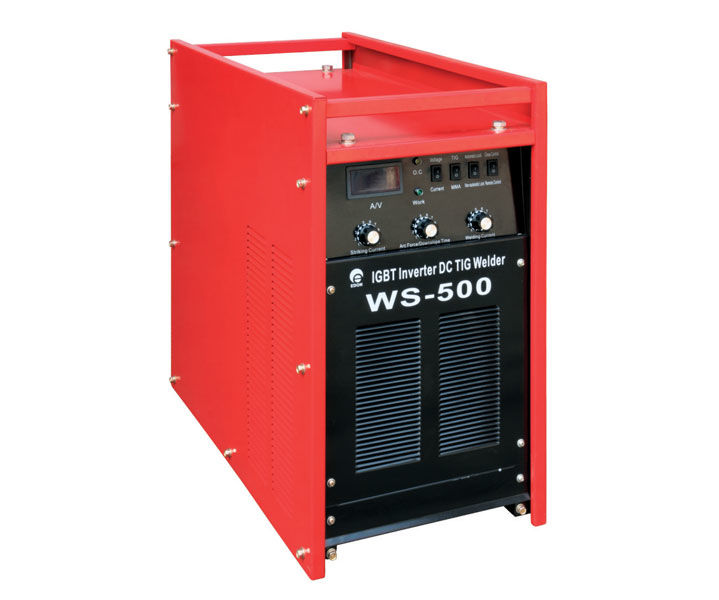

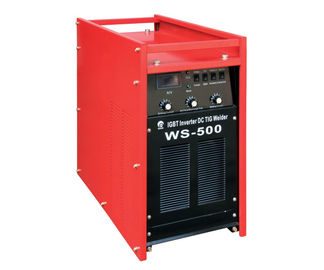

Large Image :  WS Series Single IGBT Inverter TIG/MMA Welding Machine WS400

Product Details:

Place of Origin: CHINA

Payment & Shipping Terms:

Delivery Time: 10-20 days
Minimum Order Quantity: 3000 sets per month
Contact Now
Detailed Product Description
High Light:

TIG welding machine

,

IGBT TIG welder

,

inverter TIG welding machine

Specifications

WS Series Single IGBT Inverter TIG/MMA Welding Machine WS400
1. TIG/MMAwelder welding equipment
2. Suitable for welding small

WS Series Single IGBT Inverter TIG/MMA Welding Machine WS400

1. Suitable for TIG, MMA, two fuctions in one machine.
2. FH arcing, easier operation.
3. Special arc force adjustment for MMA welding, easier operation.
4. LED digital display can present excact current.
5. Choosable water-cooling function and setting.
6. Applicable for welding of carbon steel, alloy steel, stainless steel, copper, and titanium, etc.
7. Applicable for various acid and basic electrodes

TECHNICAL SPECIFICATIONS

Model

WS400

Input power voltage Frequency

AC.three phase 220V~415V±15% 50Hz

Rated input power capacity

13KW

Output current range

20-400A

Rated output voltage

26V

No-load voltage

60V

Duty cycle

60%

No-load power

100W

Weight

27Kg

Overall dimension

560*340*560mm

Postflow time

5

Current of MMA

20-380A

Drive adjustment arrange

0-100A

Welding thickness

0.5-20mm

Insulation class

B

Efficiency

85%

Power factor

0.93

Protection class of case

IP21
