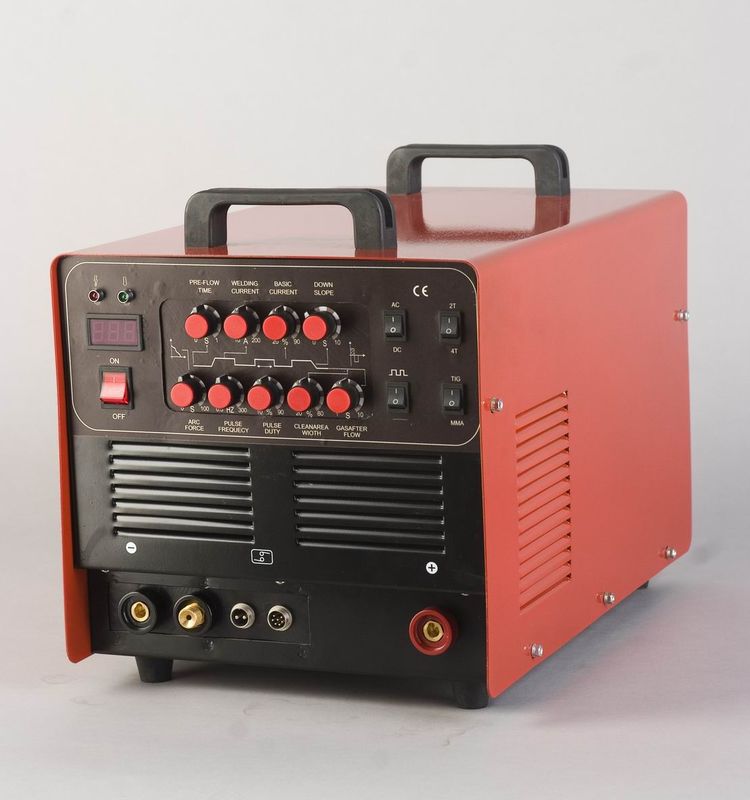

Inverter Pulse TIG;Inverter AC/DC Pulse TIG/MMA Welder WSME200
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| High Light: | TIG welding machine,ac dc tig welder,inverter welding machine |
||
|---|---|---|---|
1. MOSFET inverter technology and precision constant current feedback control technology, soft switch, high working efficiency;
2. Wide working voltage range, strong adaptability to electricity power grid fluctuation, excellent arc striking performance;
3. Thermostatic protection, over-voltage protection, over-current protection, under-voltage protection,;
4. Applicable forTIG and MMA welder;
5. Suitable for metal sheets: stainless steel, carbon steel, alloy steel, titanium, etc;
6. Complete accessories: welding torch, welding cable, earth clamp, welding holder, carton box.
Model Spec. | WSME-200 |
Power supply voltage | AC220+15% V / 50~60 Hz |
Power supply capacity | 4.2 kVA |
Rated input current | 16.8 A |
Duty cycle | 60% |
Output current range | 5-200 A |
Cleaning proportion | 1-100% |
PWM range | 10%-99% |
Up-slope time | 0.1-15 s |
Down-slope time | 0.1-15 s |
Efficiency | 77% |
Power factor (η) | 0.95 |
Weight | 40 kg |
Dimensions (mm) | 330 x 320 x 500 |
