Full automatic N95 KN95 FFP2 facial disposable mask production line
1. Equipment functions:
1. The speed is adjustable, the product quality is stable, the operation is convenient, and the production efficiency is high, 80-100 tablets per minute.
2. All-aluminum profile machine is neat and beautiful, no welding, no painting. Human-machine interface touch screen control, built-in time, total output, same-day output, set number of automatic alarm and shutdown, digital keys to adjust the filming speed.
3. The motor adopts a three-phase gear motor, the magnetic wheel deceleration with a braking function, and the noise is extremely low.
4. Mask forming high-strength cutter, superior performance, high-speed filming.
3. Technical parameters:
Total power about 15.5KW
Voltage 380V, AC ± 5%, 50 / 60HZ
Production speed: 40-50 pieces / min
Machine weight 1800kg

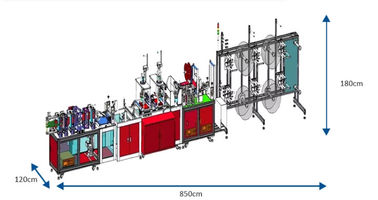

Dimensions 6800 * 4800 * 1900mm (length * width * height)
Use environment: no dust (not less than 100,000)
Compressed air 0.5-0.8MPa, after primary filtration, 305L / Min
Folding symmetry ± 2mm
4. Main configuration:
No. Name Brand / Origin Remarks
1 PLC Mitsubishi / Japan 1 set
2 motor city state / China 1 set
3 inverters Wed Weinuo / China 1 set
4 touch screen 1 set
5 unloading conveyor motor China 1
6 Unloading debugger China 1
7 Low-voltage electrical appliances China
8 Folding mechanism
9 Non-woven cloth cutters and cutter holders
10 Conveying part
11 Feeding racks
12 electric control box
13 Main Frame
