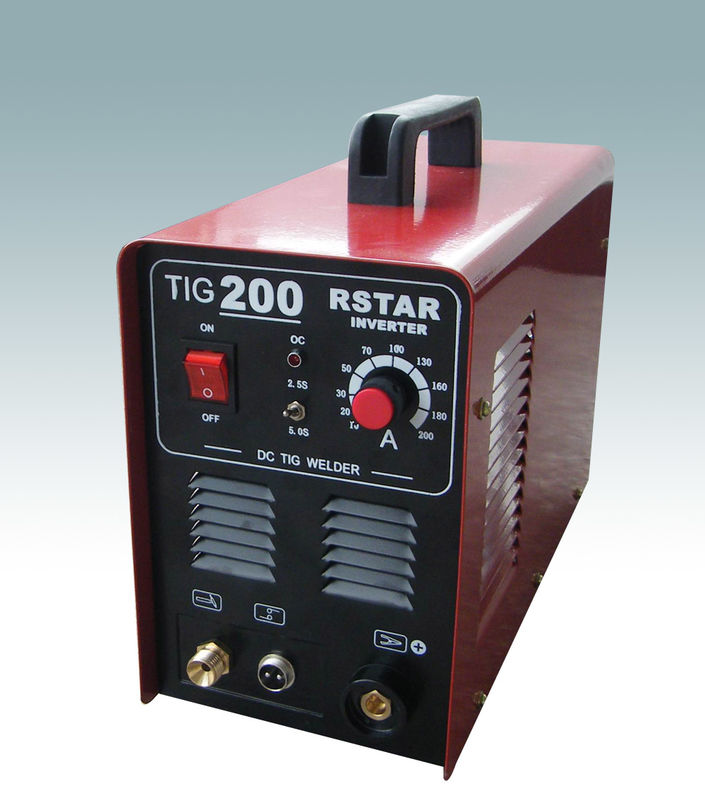

Mini Inverter DC TIG Welder

China Mini Inverter DC TIG Welder supplier

Large Image :  Mini Inverter DC TIG Welder

Product Details:

Place of Origin: china
Brand Name: RSTAR
Certification: CE
Model Number: WS

Payment & Shipping Terms:

Delivery Time: 10-20
Supply Ability: 2000 sets per month
Minimum Order Quantity: 10 sets
Contact Now
Detailed Product Description

1. Advanced inverter technology, high working frequency, reduced size and weight, easy to carry.

2. HF pressure increasing arc initiation and pulsation thermal arc initiation design, excellent arc initiation performance, ample welding current, super cost/performance ratio.

3. Unique over pressure protection design, voltage up to 380V will not damage the machine.

4. Unique output characteristics design, more suitable for filter wire welding, excellent weld appearance.

5. Wide working voltage range, strong adaptability to electricity network, high duty cycle, more suitable for factory continuous operation.

6. Simple structure, good process, reliable and durable, easy for maintenance.

7. Be able to weld carbon steel, stainless steel, copper and titanor metal, etc.,

8. Complete accessories: welding torch, welding cable,earth clamp, carton box

Main technical parameters

TIG-160

TIG-200

TIG250

Input power voltage (v):

AC 220+10%

AC 220+10%

AC 220+10%

Frequency (HZ):

100

100

100

Rate input power capacity (KVA)

4.0

5.5

7.0

No-load voltage (V):

43

43

43

Output current range (A):

5-160

5-200

5-250

Rated output voltage (V):

14

18

22

Duty cycle (%):

60

60

60

Efficiency (%):

85

85

85

Insulation class:

F

F

F

Weight (kg):

8.5

9.5

10.5

Measurement (cm):

43 x 21 x 36

43 x 21 x 36

43 x 21 x 36

Protection class :

IP21

IP21

IP21
